Nashville Wire | Standard Waterfall Wire Decks for Step Beams | In Stock! | Greensboro, NC
Size

36'' Deep x 46'' Wide
36'' Deep x 52'' Wide

42'' Deep x 46'' Wide
42'' Deep x 52'' Wide

48'' Deep x 46'' Wide
48'' Deep x 52'' Wide
Part No.

D3646AA3B1
D3652AA3B1

D4246AA3A1
D4252AA3A1

D4846AA3C1
D4852BA3A1
Capacity

2,700lbs
2,700lbs

2,700lbs
2,700lbs

2,500lbs
2,500lbs
Weight

16lbs
18lbs

20lbs
22lbs

24lbs
27lbs
Price

$14.00
$15.00

$15.00
$18.00

$19.00
$21.00

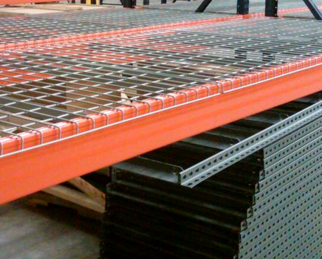

Standard Wire Decking In Stock - Greensboro, NC
Stocking 6 Sizes of Wire Decks!
                                Greensboro, NC

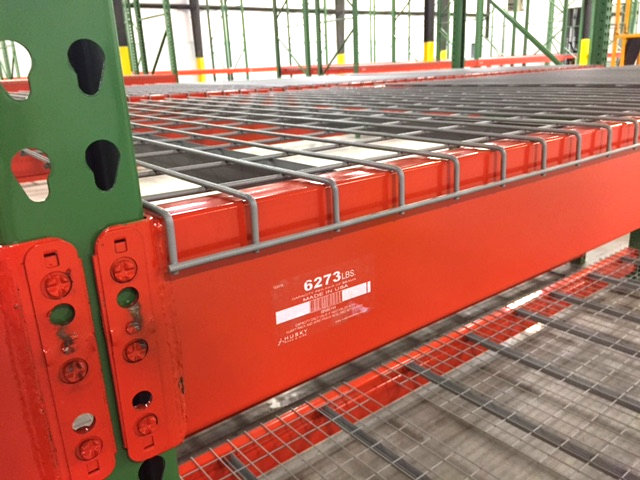

Available from Greensboro, NC now are six popular sizes of wire decking.  These medium/heavy duty wire decks have a capacity ranging from 2,500 - 2,700lbs.  The wire mesh decking have a 2.5'' x 4'' mesh pattern with 3 channels on each deck.  These standard waterfall wire decks accommodate the very popular 1-5/8'' step beam on pallet racks.  The wire diameter is 6 gauge for the wire decks listed below except for the 48'' x 52'' wire decks which have a 5 gauge wire.  There is a standard 1.5'' waterfall on both sides which hangs over the face of the beams.  The wire decking is painted with a powder coat gray finish.


The most popular pallet rack upright depths are 36'' deep, 42'' deep and 48'' deep. For your convenience our Greensboro, NC location is now stocking these three depths in wire decks to accommodate these standard upright depths. The most common length of beams are 8' long, 9' long and 12' long.  8' long step beams use two 46'' wide wire decks.  9' long step beams use two 52'' wide wire decks.  And finally, 12' long step beams used three 46'' wide wire decks.
Feel free to call 336-253-8766 or email sales@palletrackworld.com for questions, to request a quote, or to place an order on your wire decks today!
D4246AA3A1 42'' Deep x 46'' Wide Wire Decks for 8' and 12' long step beams
Order Wire mesh decking

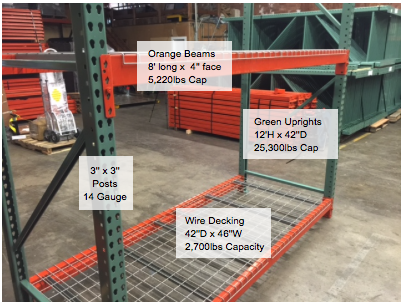

Guide to Ordering Wire Mesh Decking
Upright Depth
36'' Deep


2) 36'' Deep x 46'' Wide Wire Decks

2)  36'' Deep x 52'' Wide Wire Decks

3)  36'' Deep x 46'' Wide Wire Decks
42'' Deep


2)  42'' Deep x 46'' Wide Wire Decks

2)  42'' Deep x 52'' Wide Wire Decks

3)  42'' Deep x 46'' Wide Wire Decks
48'' Deep


2)  48'' Deep x 46'' Wide Wire Decks

2)  48'' Deep x 52'' Wide Wire Decks

3)  48'' Deep x 46'' Wide Wire Decks
B
e
a
m

L
e
n
g
t
h
8'
9'
12'
Item Number#:

Brand:

Size:

Ships From:

Freight:

Lead Time:
D4246AA3A1

Nashville Wire

42'' Deep x 46'' Wide

Greensboro, NC

Class 70 | FOB 27407

Ships 1-3 Days after Order
  Qty                                Price
  1-99                                $15.00 each
100-499                            $14.00 each
500-999                            $13.50 each
1,000 +                             $13.00 each
warehouse rack wire decking, wire mesh, cages for pallet racking
  • Ships from Greensboro, NC
  • FOB 27407
  • 2-3 Day lead time
  • Freight Class 70
  • Standard dock to dock
  • Pick ups welcome
  • Accept all major credit cards
  • ​Email or fill out form - quote
  • Call or email to order
