Flared Wire Decking for Box/Structural Beams
A Box or “C” Channel Flared Waterfall Wire Deck uses a flattened end to rest on top of the beam surface. It also has a waterfall edge to keep the deck securely on the beam and holds it into place. This creates a partially unobstructed view of the beam face for reading the labels and product barcodes.

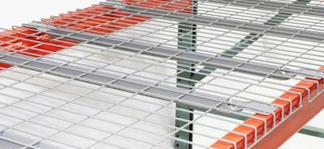

This image shows a “U” Channel cross support that has been flattened at the end so it can rests on the top on the box beam. This adds to the strength of the Wire Deck. The more Channels a deck has the more it can hold. A typical wire deck comes with 3 channels and larger ones will have 4. The Waterfall edging helps create a snug fit and add extra strength to the deck.
| SKU | Description | Depth | Width | Capacity | Weight | Qty 1-99 | Qty 100+ |
|---|---|---|---|---|---|---|---|
| D2446AA3B2 | Flared Dire Decking 24'' Deep x 46'' Wide | 24 | 45.75 | 2500 UDL | 11.32 | ||
| D3646AA3A2 | Flared Wire Decking 36'' Deep x 46'' Wide | 36 | 45.75 | 2500 UDL | 17.67 | ||
| D3652AA3A2 | Flared Wire Decking 36'' Deep x 52'' Wide | 36 | 52.25 | 2500 UDL | 19.16 | ||
| D4246AA3A2 | Flared Wire Decking 42'' Deep x 46'' Wide | 42 | 45.75 | 2100 UDL | 20.66 | ||
| D4246EA3A2 | Flared Wire Decking 42'' Deep x 46'' Wide | 42 | 45.75 | 2500 UDL | 24.96 | ||
| D4246BB4A2 | Flared Wire Decking 42'' Deep x 46'' Wide | 42 | 45.75 | 3000 UDL | 27.3 | ||
| D4252EA3A2 | Flared Wire Decking42'' Deep x 52'' Wide | 42 | 52.25 | 2500 UDL | 27.36 | ||
| D4446EA3A2 | Flared Wire Decking 44'' Deep x 46'' Wide | 44 | 45.75 | 2500 UDL | 25.83 | ||
| D4846EA4A2 | Flared Wire Decking 48'' Deep x 46'' Wide | 48 | 45.75 | 2500 UDL | 31.56 | ||
| D4852EA4A2 | Flared Wire Decking 48'' Deep x 52'' Wide | 48 | 52.25 | 2500 UDL | 34.24 |
Flared wire decks are engineered to fit all styles of beams, as they are designed to fit beams that have no insert or step.
The universal fit is ideal for applications that utilize box beams and/or structural beams. Flared wire decks can also be used with pallet step-beams.
Pallet Rack Wire Decking in Stock in the Following Locations!
Flared deck for step beam
Flared deck for structural/box beam
